ActiveFluid

A Two Dimensional Active Fluid Solver

In this example, we perform time integration in a 2d domain of particles of the following Active Fluid partial differential equation:

\[ \frac{\mathrm{D} p_{\alpha}}{\mathrm{D} t}=\frac{h_{\alpha}}{\gamma}-\nu u_{\alpha \beta} p_{\beta}+\lambda\Delta\mu p_\alpha+ \omega_{\alpha \beta} p_{\beta}\\ \partial_{\beta} \sigma_{\alpha \beta}-\partial_{\alpha} \Pi=0 \\ \partial_{\gamma} v_{\gamma}=0\\ 2 \eta u_{\alpha \beta}=\sigma_{\alpha \beta}^{(s)}+\zeta \Delta \mu\left(p_{\alpha} p_{\beta}-\frac{1}{2} p_{\gamma} p_{\gamma} \delta_{\alpha \beta}\right) -\frac{\nu}{2}\left(p_{\alpha} h_{\beta}+p_{\beta} h_{\alpha}-p_{\gamma} h_{\gamma} \delta_{\alpha \beta}\right) \]

It is highly recommended to go through the Odeint Example and the Pressure correction Stokes-Flow example to understand this code.

We employ a Lagrangian frame of reference for polarity time evolution. Hence the PDE is transformed to a system of PDEs:

\[\begin{align} \frac{\partial\vec{X}}{dt}=\vec{V}\\ \frac{\partial p_\alpha}{dt}=\frac{h_{\alpha}}{\gamma}-\nu u_{\alpha \beta} p_{\beta}+\lambda\Delta\mu p_\alpha+ \omega_{\alpha \beta} p_{\beta} \end{align} \]

Where \(\vec{X}\) is the position vector. Hence, we have decoupled the moving of the particles from the evolution of the Polarity. As it can be expensive to recompute derivatives at every stage of a time integrator in a single step, we will integrate the PDEs with seperate techniques (Euler step for moving the particles and solving the force balance for advection).

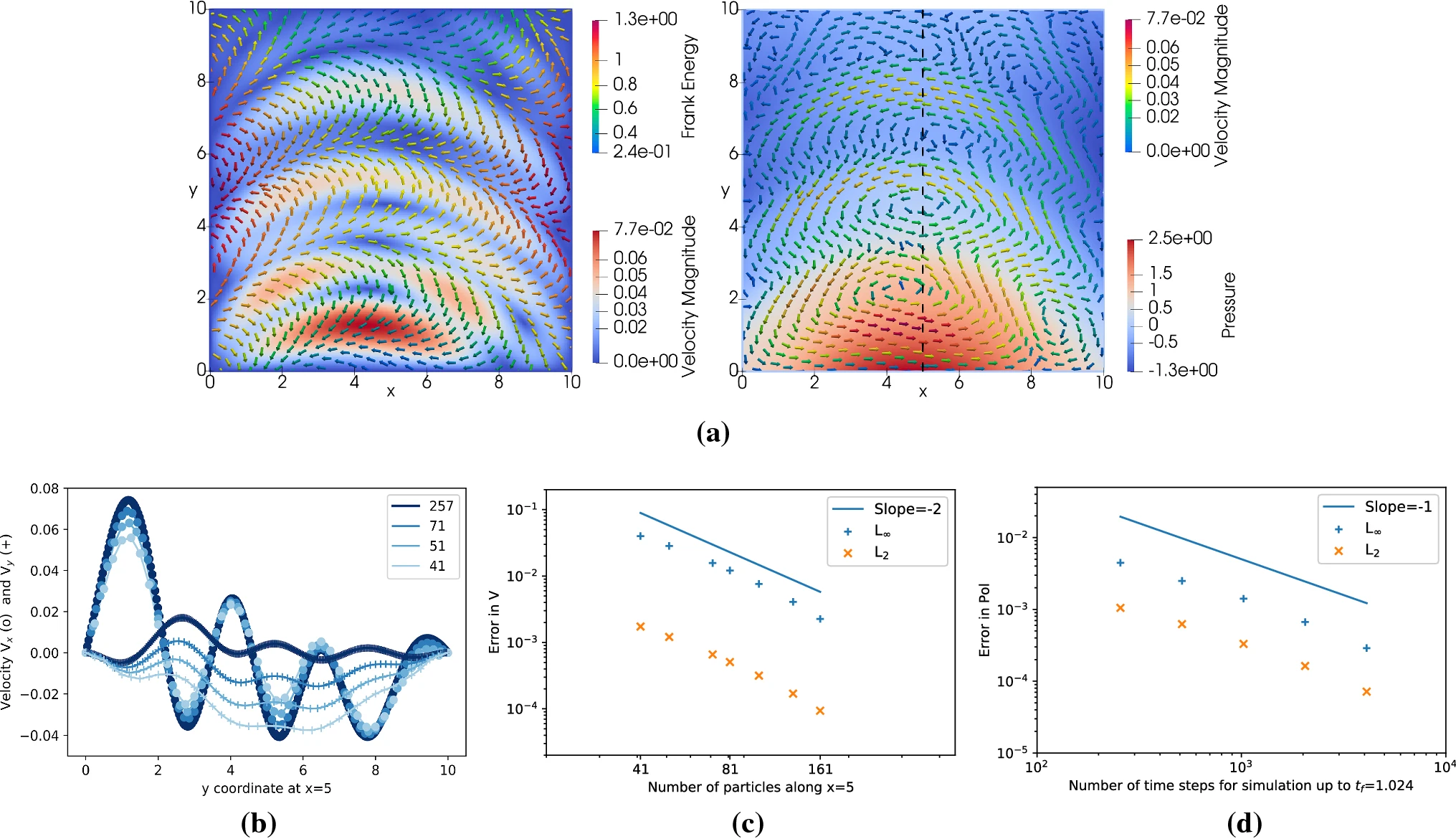

Output: Time series data of the PDE Solution.

Including the headers

These are the header files that we need to include:

// Include Vector Expression,Vector Expressions for Subset,DCPSE,Odeint header files
#include "config.h"
#define BOOST_MPL_CFG_NO_PREPROCESSED_HEADERS
#define BOOST_MPL_LIMIT_VECTOR_SIZE 40
#include <iostream>
#include "DCPSE/DCPSE_op/DCPSE_op.hpp"
#include "DCPSE/DCPSE_op/DCPSE_Solver.hpp"
#include "Operators/Vector/vector_dist_operators.hpp"
#include "Vector/vector_dist_subset.hpp"
#include "DCPSE/DCPSE_op/EqnsStruct.hpp"
#include "OdeIntegrators/OdeIntegrators.hpp"

Initialization of the global parameters

We start with

  • Initializing certain global parameteres we will use: such as x,y to refer to the dimensions 0 and 1. (Makes it easier to read equations in code)
  • Creating empty pointers for coupling openfpm distributed vector with odeint. One for the entire distributed vector and another for the subset or bulk. We seperate bulk and the entire distribution as it makes it easier to impose boundary conditions. (Which will be more apparant in ComputeRHS of the PDE) Note that a subset expression always comes at the left hand side of a computation. (The semantics of the expressions is by denoting what we want to update from regular expressions)

Creating aliases of the types of the datasructures we are going to use in OpenFPM. Property_type as the type of properties we wish to use. dist_vector_type as the 2d openfpm distributed vector type dist_vector_type as the 2d openfpm distributed subset vector type

constexpr int x = 0;
constexpr int y = 1;
constexpr int POLARIZATION= 0,VELOCITY = 1, VORTICITY = 2, EXTFORCE = 3,PRESSURE = 4, STRAIN_RATE = 5, STRESS = 6, MOLFIELD = 7, DPOL = 8, DV = 9, VRHS = 10, F1 = 11, F2 = 12, F3 = 13, F4 = 14, F5 = 15, F6 = 16, V_T = 17, DIV = 18, DELMU = 19, HPB = 20, FE = 21, R = 22;
double eta = 1.0;
double nu = -0.5;
double gama = 0.1;
double zeta = 0.07;
double Ks = 1.0;
double Kb = 1.0;
double lambda = 0.1;
int wr_f;
int wr_at;
double V_err_eps;
void *vectorGlobal=nullptr,*vectorGlobal_bulk=nullptr,*vectorGlobal_boundary=nullptr;
const openfpm::vector<std::string>
PropNAMES={"00-Polarization","01-Velocity","02-Vorticity","03-ExternalForce","04-Pressure","05-StrainRate","06-Stress","07-MolecularField","08-DPOL","09-DV","10-VRHS","11-f1","12-f2","13-f3","14-f4","15-f5","16-f6","17-V_T","18-DIV","19-DELMU","20-HPB","21-FrankEnergy","22-R"};
typedef aggregate<VectorS<2, double>,VectorS<2, double>,double[2][2],VectorS<2, double>,double,double[2][2],double[2][2],VectorS<2, double>,VectorS<2, double>,VectorS<2, double>,VectorS<2, double>,double,double,double,double,double,double,VectorS<2, double>,double,double,double,double,double> Activegels;
typedef vector_dist_ws<2, double,Activegels> vector_type;
typedef vector_dist_subset<2, double, Activegels> vector_type2;
Point
This class implement the point shape in an N-dimensional space.
Definition Point.hpp:28
openfpm::vector
Implementation of 1-D std::vector like structure.
Definition map_vector.hpp:203
vector_dist_subset
Definition vector_dist_subset.hpp:84
vector_dist_ws
Definition vector_dist_subset.hpp:17
vector_dist
Distributed vector.
Definition vector_dist.hpp:305
aggregate
aggregate of properties, from a list of object if create a struct that follow the OPENFPM native stru...
Definition aggregate.hpp:215
eta
[Definition of the system]
Definition eq_unit_test.cpp:72

Creating the RHS Functor

Odeint works with certain specific state_types. We offer certain state types such as 'state_type_2d_ofp' for making openfpm work with odeint.

Now we create the RHS functor. Please refer to ODE_int for more detials. Note that we have templated it with two operator types DXX and DYY as we need to compute Laplacian at each stage. We will pass the DCPSE operators to an instance of this functor.

All RHS computations needs to happen in the operator (). Odeint expects the arguments here to be an input state_type X, an output state_tyoe dxdt and time t. We pass on the openfpm distributed state types as void operator()( const state_type_2d_ofp &X , state_type_2d_ofp &dxdt , const double t ) const

Since we would like to use openfpm here. We cast back the global pointers created before to access the Openfpm distributed vector here. (Note that these pointers needs to initialized in the main(). Further, 'state_type_2d_ofp' is a temporal structure, which means it does not have the ghost. Hence we copy the current state back to the openfpm vector from the openfpm state type X. We do our computations as required. Then we copy back the output into the state_type dxdt)

//Functor to Compute RHS of the time derivative of the polarity
template<typename DX,typename DY,typename DXX,typename DXY,typename DYY>
struct PolarEv
{
DX &Dx;
DY &Dy;
DXX &Dxx;
DXY &Dxy;
DYY &Dyy;
//Constructor
PolarEv(DX &Dx,DY &Dy,DXX &Dxx,DXY &Dxy,DYY &Dyy):Dx(Dx),Dy(Dy),Dxx(Dxx),Dxy(Dxy),Dyy(Dyy)
{}
void operator()( const state_type_2d_ofp &X , state_type_2d_ofp &dxdt , const double t ) const
{
vector_type &Particles= *(vector_type *) vectorGlobal;
vector_type2 &Particles_bulk= *(vector_type2 *) vectorGlobal_bulk;
auto Pol=getV<POLARIZATION>(Particles);
auto Pol_bulk=getV<POLARIZATION>(Particles_bulk);
auto h = getV<MOLFIELD>(Particles);
auto u = getV<STRAIN_RATE>(Particles);
auto dPol = getV<DPOL>(Particles);
auto W = getV<VORTICITY>(Particles);
auto delmu = getV<DELMU>(Particles);
auto H_p_b = getV<HPB>(Particles);
auto r = getV<R>(Particles);
auto dPol_bulk = getV<DPOL>(Particles_bulk);
Pol[x]=X.data.get<0>();
Pol[y]=X.data.get<1>();
Particles.ghost_get<POLARIZATION>(SKIP_LABELLING);
H_p_b = Pol[x] * Pol[x] + Pol[y] * Pol[y];
h[y] = (Pol[x] * (Ks * Dyy(Pol[y]) + Kb * Dxx(Pol[y]) + (Ks - Kb) * Dxy(Pol[x])) -
Pol[y] * (Ks * Dxx(Pol[x]) + Kb * Dyy(Pol[x]) + (Ks - Kb) * Dxy(Pol[y])));
h[x] = -gama * (lambda * delmu - nu * (u[x][x] * Pol[x] * Pol[x] + u[y][y] * Pol[y] * Pol[y] + 2 * u[x][y] * Pol[x] * Pol[y]) / (H_p_b));
dPol_bulk[x] = ((h[x] * Pol[x] - h[y] * Pol[y]) / gama + lambda * delmu * Pol[x] -
nu * (u[x][x] * Pol[x] + u[x][y] * Pol[y]) + W[x][x] * Pol[x] +
W[x][y] * Pol[y]);
dPol_bulk[y] = ((h[x] * Pol[y] + h[y] * Pol[x]) / gama + lambda * delmu * Pol[y] -
nu * (u[y][x] * Pol[x] + u[y][y] * Pol[y]) + W[y][x] * Pol[x] +
W[y][y] * Pol[y]);
dxdt.data.get<0>()=dPol[x];
dxdt.data.get<1>()=dPol[y];
}
};
vector_dist::ghost_get
void ghost_get(size_t opt=WITH_POSITION)
It synchronize the properties and position of the ghost particles.
Definition vector_dist.hpp:2481
state_type_2d_ofp
A 2d Odeint and Openfpm compatible structure.
Definition OdeIntegrators.hpp:128

Creating the Observer Functor

There are multiple ways in which the system can be integrated. For example, and ideally, we could put both the PDEs into the RHS functor (Moving the particles at every stage). This can be expensive. However, Often in numerical simulations, Both the PDEs can be integrated with seperate steppers. To achieve this we will use the observer functor. The observer functor is called before every time step evolution by odeint. Hence we can use it to update the position of the particles, with an euler step. and also update the operators and solve the force balance equations below.

\[ \eta \partial_{x}^{2} v_{\mathrm{x}}+\eta \partial_{y}^{2} v_{\mathrm{x}}-\partial_{x} \Pi+\frac{\nu}{2} \partial_{x}\left[\frac{\gamma \nu u_\mathrm{x x} p_{\mathrm{x}}^{2}\left(p_{\mathrm{x}}^{2}-p_{\mathrm{y}}^{2}\right)}{p_{\mathrm{x}}^{2}+p_{\mathrm{y}}^{2}}\right]+ \frac{\nu}{2} \partial_{x}\left[\frac{2 \gamma \nu u_{\mathrm{xy}} p_{\mathrm{x}} p_{\mathrm{y}}\left(p_{\mathrm{x}}^{2}-p_{\mathrm{y}}^{2}\right)}{p_{\mathrm{x}}^{2}+p_{\mathrm{y}}^{2}}\right] +\frac{\nu}{2} \partial_{x}\left[\frac{\gamma \nu u_{\mathrm{yy}} p_{\mathrm{y}}^{2}\left(p_{\mathrm{x}}^{2}-p_{\mathrm{y}}^{2}\right)}{p_{\mathrm{x}}^{2}+p_{\mathrm{y}}^{2}}\right] + \frac{\nu}{2} \partial_{y}\left[\frac{2 \gamma \nu u_{\mathrm{xx}} p_{\mathrm{x}}^{3} p_{\mathrm{y}}}{p_{\mathrm{x}}^{2}+p_{\mathrm{y}}^{2}}\right]+\frac{\nu}{2} \partial_{y}\left[\frac{4 \gamma \nu u_{\mathrm{xy}} p_{\mathrm{x}}^{2} p_{\mathrm{y}}^{2}}{p_{\mathrm{x}}^{2}+p_{\mathrm{y}}^{2}}\right]+\frac{\nu}{2} \partial_{y}\left[\frac{2 \gamma \nu u_{\mathrm{yy}} p_{\mathrm{x}} p_{\mathrm{y}}^{3}}{p_{\mathrm{x}}^{2}+p_{\mathrm{y}}^{2}}\right] \\ =-\frac{1}{2} \partial_{y}\left(h_{\perp}\right)+\zeta \partial_{x}\left(\Delta \mu p_{\mathrm{x}}^{2}\right)+\zeta \partial_{y}\left(\Delta \mu p_{\mathrm{x}} p_{\mathrm{y}}\right)- \zeta \partial_{x}\left(\Delta \mu \frac{p_{\mathrm{x}}^{2}+p_{\mathrm{y}}^{2}}{2}\right)- \frac{\nu}{2} \partial_{x}\left(-2 h_{\perp} p_{\mathrm{x}} p_{\mathrm{y}}\right) - \quad \frac{\nu}{2} \partial_{y}\left[h_{\perp}\left(p_{\mathrm{x}}^{2}-p_{\mathrm{y}}^{2}\right)\right]-\partial_{x} \sigma_{\mathrm{xx}}^{(\mathrm{e})}-\partial_{y} \sigma_{\mathrm{xy}}^{(\mathrm{e})} + \quad \frac{\nu}{2} \partial_{x}\left[\gamma \lambda \Delta \mu\left(p_{\mathrm{x}}^{2}-p_{\mathrm{y}}^{2}\right)\right]-\frac{\nu}{2} \partial_{y}\left(-2 \gamma \lambda \Delta \mu p_{\mathrm{x}} p_{\mathrm{y}}\right), \\ \eta \partial_{x}^{2} v_{\mathrm{y}}+\eta \partial_{y}^{2} v_{\mathrm{y}}-\partial_{y} \Pi+\frac{\nu}{2} \partial_{y}\left[\frac{-\gamma \nu u_{\mathrm{xx}} p_{\mathrm{x}}^{2}\left(p_{\mathrm{x}}^{2}-p_{\mathrm{y}}^{2}\right)}{p_{\mathrm{x}}^{2}+p_{\mathrm{y}}^{2}}\right] + \frac{\nu}{2} \partial_{y}\left[\frac{-2 \gamma \nu u_{\mathrm{xy}} p_{\mathrm{x}} p_{\mathrm{y}}\left(p_{\mathrm{x}}^{2}-p_{\mathrm{y}}^{2}\right)}{p_{\mathrm{x}}^{2}+p_{\mathrm{y}}^{2}}\right] +\frac{\nu}{2} \partial_{y}\left[\frac{-\gamma \nu u_{\mathrm{yy}} p_{\mathrm{y}}^{2}\left(p_{\mathrm{x}}^{2}-p_{\mathrm{y}}^{2}\right)}{p_{\mathrm{x}}^{2}+p_{\mathrm{y}}^{2}}\right] + \frac{\nu}{2} \partial_{x}\left[\frac{2 \gamma \nu u_{\mathrm{x} x} p_{\mathrm{x}}^{3} p_{\mathrm{y}}}{p_{\mathrm{x}}^{2}+p_{\mathrm{y}}^{2}}\right]+\frac{\nu}{2} \partial_{x}\left[\frac{4 \gamma \nu u_{\mathrm{xx}} p_{\mathrm{x}}^{2} p_{\mathrm{y}}^{2}}{p_{\mathrm{x}}^{2}+p_{\mathrm{y}}^{2}}\right]+\frac{\nu}{2} \partial_{x}\left[\frac{2 \gamma\nu u_{\mathrm{yy}} p_{\mathrm{x}} p_{\mathrm{y}}^{3}}{p_{\mathrm{x}}^{2}+p_{\mathrm{y}}^{2}}\right] \\ =-\frac{1}{2} \partial_{x}\left(-h_{\perp}\right)+\zeta \partial_{y}\left(\Delta \mu p_{\mathrm{y}}^{2}\right)+\zeta \partial_{x}\left(\Delta \mu p_{\mathrm{x}} p_{\mathrm{y}}\right)- \zeta \partial_{y}\left(\Delta \mu \frac{p_{\mathrm{x}}^{2}+p_{\mathrm{y}}^{2}}{2}\right)-\frac{\nu}{2} \partial_{y}\left(2 h_{\perp} p_{\mathrm{x}} p_{\mathrm{y}}\right) - \frac{\nu}{2} \partial_{x}\left[h_{\perp}\left(p_{\mathrm{x}}^{2}-p_{\mathrm{y}}^{2}\right)\right]-\partial_{x} \sigma_{\mathrm{yx}}^{(\mathrm{e})}-\partial_{y} \sigma_{\mathrm{yy}}^{(\mathrm{e})}- \frac{\nu}{2} \partial_{y}\left[\gamma \lambda \Delta \mu\left(p_{\mathrm{x}}^{2}-p_{\mathrm{y}}^{2}\right)\right]-\frac{\nu}{2} \partial_{x}\left(-2 \gamma \lambda \Delta \mu p_{\mathrm{x}} p_{\mathrm{y}}\right). \]

Now we create the Observer functor that will calculate velocity. Note that we have templated it with Differential operators of types DXX and so on. We use them to solve force balance. We further update them after moving the particles.

All Observer computations needs to happen in the operator (). Odeint expects the arguments here to be an input state_type X, and time t. We pass on the openfpm distributed state types as void operator()( const state_type_2d_ofp &X , const double t ) const

Since we would like to use again openfpm here. We cast back the global pointers created before to access the Openfpm distributed vector here. (Note that these pointers needs to initialized in the main(). Further, 'state_type_2d_ofp' is a temporal structure, which means it does not have the ghost. Hence we copy the current state back to the openfpm vector from the openfpm state type X. We do our computations as required. Then we copy back the output into the state_type dxdt.

// Functor to calculate velocity and move particles with explicit euler
template<typename DX,typename DY,typename DXX,typename DXY,typename DYY>
struct CalcVelocity
{
DX &Dx, &Bulk_Dx;
DY &Dy, &Bulk_Dy;
DXX &Dxx;
DXY &Dxy;
DYY &Dyy;
double t_old;
int ctr;
//Constructor
CalcVelocity(DX &Dx,DY &Dy,DXX &Dxx,DXY &Dxy,DYY &Dyy,DX &Bulk_Dx,DY &Bulk_Dy):Dx(Dx),Dy(Dy),Dxx(Dxx),Dxy(Dxy),Dyy(Dyy),Bulk_Dx(Bulk_Dx),Bulk_Dy(Bulk_Dy)
{
t_old = 0.0;
ctr = 0;
}
void operator() (state_type_2d_ofp &state, double t)
{
double dt = t - t_old;
vector_type &Particles= *(vector_type *) vectorGlobal;
vector_type2 &Particles_bulk= *(vector_type2 *) vectorGlobal_bulk;
vector_type2 &Particles_boundary= *(vector_type2 *) vectorGlobal_boundary;
auto &v_cl = create_vcluster();
timer tt;
auto Pos = getV<PROP_POS>(Particles);
auto Pol=getV<POLARIZATION>(Particles);
auto V = getV<VELOCITY>(Particles);
auto H_p_b = getV<HPB>(Particles);
// skip in first time step
if (dt != 0) {
tt.start();
//normalize polarization
H_p_b = sqrt(Pol[x] * Pol[x] + Pol[y] * Pol[y]);
Pol = Pol / H_p_b;
Pos = Pos + (t-t_old)*V;
Particles.map();
Particles.ghost_get<POLARIZATION, EXTFORCE, DELMU>();
Particles_bulk.update();
Particles_boundary.update();
tt.start();
Dx.update(Particles);
Dy.update(Particles);
Dxy.update(Particles);
Dxx.update(Particles);
Dyy.update(Particles);
Bulk_Dx.update(Particles_bulk);
Bulk_Dy.update(Particles_bulk);
state.data.get<0>()=Pol[x];
state.data.get<1>()=Pol[y];
tt.stop();
if (v_cl.rank() == 0) {
std::cout << "Updating operators took " << tt.getwct() << " seconds." << std::endl;
std::cout << "Time step " << ctr << " : " << t << " over." << std::endl;
std::cout << "----------------------------------------------------------" << std::endl;
}
ctr++;
}
auto Dyx = Dxy;
t_old = t;
tt.start();
auto & bulk = Particles_bulk.getIds();
auto & boundary = Particles_boundary.getIds();
auto Pol_bulk=getV<POLARIZATION>(Particles_bulk);
auto sigma = getV<STRESS>(Particles);
auto r = getV<R>(Particles);
auto h = getV<MOLFIELD>(Particles);
auto FranckEnergyDensity = getV<FE>(Particles);
auto f1 = getV<F1>(Particles);
auto f2 = getV<F2>(Particles);
auto f3 = getV<F3>(Particles);
auto f4 = getV<F4>(Particles);
auto f5 = getV<F5>(Particles);
auto f6 = getV<F6>(Particles);
auto dV = getV<DV>(Particles);
auto delmu = getV<DELMU>(Particles); // why is delmu a property, not a constant?
auto g = getV<EXTFORCE>(Particles);
auto P = getV<PRESSURE>(Particles);
auto P_bulk = getV<PRESSURE>(Particles_bulk); //Pressure only on inside
auto RHS = getV<VRHS>(Particles);
auto RHS_bulk = getV<VRHS>(Particles_bulk);
auto div = getV<DIV>(Particles);
auto V_t = getV<V_T>(Particles);
auto u = getV<STRAIN_RATE>(Particles);
auto W = getV<VORTICITY>(Particles);
Pol_bulk[x]=state.data.get<0>();
Pol_bulk[y]=state.data.get<1>();
Particles.ghost_get<POLARIZATION>(SKIP_LABELLING);
eq_id x_comp, y_comp;
x_comp.setId(0);
y_comp.setId(1);
int n = 0,nmax = 300,errctr = 0, Vreset = 0;
double V_err = 1,V_err_eps = 5 * 1e-3, V_err_old,sum, sum1;
std::cout << "Calculate velocity (step t=" << t << ")" << std::endl;
tt.start();
petsc_solver<double> solverPetsc;
solverPetsc.setSolver(KSPGMRES);
solverPetsc.setPreconditioner(PCJACOBI);
Particles.ghost_get<POLARIZATION>(SKIP_LABELLING);
// calculate stress
sigma[x][x] =
-Ks * Dx(Pol[x]) * Dx(Pol[x]) - Kb * Dx(Pol[y]) * Dx(Pol[y]) + (Kb - Ks) * Dy(Pol[x]) * Dx(Pol[y]);
sigma[x][y] =
-Ks * Dy(Pol[y]) * Dx(Pol[y]) - Kb * Dy(Pol[x]) * Dx(Pol[x]) + (Kb - Ks) * Dx(Pol[y]) * Dx(Pol[x]);
sigma[y][x] =
-Ks * Dx(Pol[x]) * Dy(Pol[x]) - Kb * Dx(Pol[y]) * Dy(Pol[y]) + (Kb - Ks) * Dy(Pol[x]) * Dy(Pol[y]);
sigma[y][y] =
-Ks * Dy(Pol[y]) * Dy(Pol[y]) - Kb * Dy(Pol[x]) * Dy(Pol[x]) + (Kb - Ks) * Dx(Pol[y]) * Dy(Pol[x]);
Particles.ghost_get<STRESS>(SKIP_LABELLING);
// if R == 0 then set to 1 to avoid division by zero for defects
r = Pol[x] * Pol[x] + Pol[y] * Pol[y];
for (int j = 0; j < bulk.size(); j++) {
auto p = bulk.get<0>(j);
Particles.getProp<R>(p) = (Particles.getProp<R>(p) == 0) ? 1 : Particles.getProp<R>(p);
}
for (int j = 0; j < boundary.size(); j++) {
auto p = boundary.get<0>(j);
Particles.getProp<R>(p) = (Particles.getProp<R>(p) == 0) ? 1 : Particles.getProp<R>(p);
}
// calculate traversal molecular field (H_perpendicular)
h[y] = (Pol[x] * (Ks * Dyy(Pol[y]) + Kb * Dxx(Pol[y]) + (Ks - Kb) * Dxy(Pol[x])) -
Pol[y] * (Ks * Dxx(Pol[x]) + Kb * Dyy(Pol[x]) + (Ks - Kb) * Dxy(Pol[y])));
Particles.ghost_get<MOLFIELD>(SKIP_LABELLING);
// calulate FranckEnergyDensity
FranckEnergyDensity = (Ks / 2.0) *
((Dx(Pol[x]) * Dx(Pol[x])) + (Dy(Pol[x]) * Dy(Pol[x])) +
(Dx(Pol[y]) * Dx(Pol[y])) +
(Dy(Pol[y]) * Dy(Pol[y]))) +
((Kb - Ks) / 2.0) * ((Dx(Pol[y]) - Dy(Pol[x])) * (Dx(Pol[y]) - Dy(Pol[x])));
Particles.ghost_get<FE>(SKIP_LABELLING);
// calculate preactors for LHS of Stokes Equation.
f1 = gama * nu * Pol[x] * Pol[x] * (Pol[x] * Pol[x] - Pol[y] * Pol[y]) / (r);
f2 = 2.0 * gama * nu * Pol[x] * Pol[y] * (Pol[x] * Pol[x] - Pol[y] * Pol[y]) / (r);
f3 = gama * nu * Pol[y] * Pol[y] * (Pol[x] * Pol[x] - Pol[y] * Pol[y]) / (r);
f4 = 2.0 * gama * nu * Pol[x] * Pol[x] * Pol[x] * Pol[y] / (r);
f5 = 4.0 * gama * nu * Pol[x] * Pol[x] * Pol[y] * Pol[y] / (r);
f6 = 2.0 * gama * nu * Pol[x] * Pol[y] * Pol[y] * Pol[y] / (r);
Particles.ghost_get<F1, F2, F3, F4, F5, F6>(SKIP_LABELLING);
texp_v<double> Dxf1 = Dx(f1),Dxf2 = Dx(f2),Dxf3 = Dx(f3),Dxf4 = Dx(f4),Dxf5 = Dx(f5),Dxf6 = Dx(f6),
Dyf1 = Dy(f1),Dyf2 = Dy(f2),Dyf3 = Dy(f3),Dyf4 = Dy(f4),Dyf5 = Dy(f5),Dyf6 = Dy(f6);
// calculate RHS of Stokes Equation without pressure
dV[x] = -0.5 * Dy(h[y]) + zeta * Dx(delmu * Pol[x] * Pol[x]) + zeta * Dy(delmu * Pol[x] * Pol[y]) -
zeta * Dx(0.5 * delmu * (Pol[x] * Pol[x] + Pol[y] * Pol[y])) -
0.5 * nu * Dx(-2.0 * h[y] * Pol[x] * Pol[y])
- 0.5 * nu * Dy(h[y] * (Pol[x] * Pol[x] - Pol[y] * Pol[y])) - Dx(sigma[x][x]) -
Dy(sigma[x][y]) -
g[x]
- 0.5 * nu * Dx(-gama * lambda * delmu * (Pol[x] * Pol[x] - Pol[y] * Pol[y]))
- 0.5 * Dy(-2.0 * gama * lambda * delmu * (Pol[x] * Pol[y]));
dV[y] = -0.5 * Dx(-h[y]) + zeta * Dy(delmu * Pol[y] * Pol[y]) + zeta * Dx(delmu * Pol[x] * Pol[y]) -
zeta * Dy(0.5 * delmu * (Pol[x] * Pol[x] + Pol[y] * Pol[y])) -
0.5 * nu * Dy(2.0 * h[y] * Pol[x] * Pol[y])
- 0.5 * nu * Dx(h[y] * (Pol[x] * Pol[x] - Pol[y] * Pol[y])) - Dx(sigma[y][x]) -
Dy(sigma[y][y]) -
g[y]
- 0.5 * nu * Dy(gama * lambda * delmu * (Pol[x] * Pol[x] - Pol[y] * Pol[y]))
- 0.5 * Dx(-2.0 * gama * lambda * delmu * (Pol[x] * Pol[y]));
Particles.ghost_get<DV>(SKIP_LABELLING);
// Encode LHS of the Stokes Equations
auto Stokes1 = eta * (Dxx(V[x]) + Dyy(V[x]))
+ 0.5 * nu * (Dxf1 * Dx(V[x]) + f1 * Dxx(V[x]))
+ 0.5 * nu * (Dxf2 * 0.5 * (Dx(V[y]) + Dy(V[x])) + f2 * 0.5 * (Dxx(V[y]) + Dyx(V[x])))
+ 0.5 * nu * (Dxf3 * Dy(V[y]) + f3 * Dyx(V[y]))
+ 0.5 * nu * (Dyf4 * Dx(V[x]) + f4 * Dxy(V[x]))
+ 0.5 * nu * (Dyf5 * 0.5 * (Dx(V[y]) + Dy(V[x])) + f5 * 0.5 * (Dxy(V[y]) + Dyy(V[x])))
+ 0.5 * nu * (Dyf6 * Dy(V[y]) + f6 * Dyy(V[y]));
auto Stokes2 = eta * (Dxx(V[y]) + Dyy(V[y]))
- 0.5 * nu * (Dyf1 * Dx(V[x]) + f1 * Dxy(V[x]))
- 0.5 * nu * (Dyf2 * 0.5 * (Dx(V[y]) + Dy(V[x])) + f2 * 0.5 * (Dxy(V[y]) + Dyy(V[x])))
- 0.5 * nu * (Dyf3 * Dy(V[y]) + f3 * Dyy(V[y]))
+ 0.5 * nu * (Dxf4 * Dx(V[x]) + f4 * Dxx(V[x]))
+ 0.5 * nu * (Dxf5 * 0.5 * (Dx(V[y]) + Dy(V[x])) + f5 * 0.5 * (Dxx(V[y]) + Dyx(V[x])))
+ 0.5 * nu * (Dxf6 * Dy(V[y]) + f6 * Dyx(V[y]));
tt.stop();
std::cout << "Init of Velocity took " << tt.getwct() << " seconds." << std::endl;
tt.start();
V_err = 1;
n = 0;
errctr = 0;
if (Vreset == 1) {
P = 0;
Vreset = 0;
}
P=0;
// integrate velocity
Particles.ghost_get<PRESSURE>(SKIP_LABELLING);
RHS_bulk[x] = dV[x] + Bulk_Dx(P);
RHS_bulk[y] = dV[y] + Bulk_Dy(P);
Particles.ghost_get<VRHS>(SKIP_LABELLING);
// prepare solver
DCPSE_scheme<equations2d2, vector_type> Solver(Particles);
Solver.impose(Stokes1, bulk, RHS[0], x_comp);
Solver.impose(Stokes2, bulk, RHS[1], y_comp);
Solver.impose(V[x], boundary, 0, x_comp);
Solver.impose(V[y], boundary, 0, y_comp);
Solver.solve_with_solver(solverPetsc, V[x], V[y]);
Particles.ghost_get<VELOCITY>(SKIP_LABELLING);
div = -(Dx(V[x]) + Dy(V[y]));
P_bulk = P + div;
// approximate velocity
while (V_err >= V_err_eps && n <= nmax) {
Particles.ghost_get<PRESSURE>(SKIP_LABELLING);
RHS_bulk[x] = dV[x] + Bulk_Dx(P);
RHS_bulk[y] = dV[y] + Bulk_Dy(P);
Particles.ghost_get<VRHS>(SKIP_LABELLING);
Solver.reset_b();
Solver.impose_b(bulk, RHS[0], x_comp);
Solver.impose_b(bulk, RHS[1], y_comp);
Solver.impose_b(boundary, 0, x_comp);
Solver.impose_b(boundary, 0, y_comp);
Solver.solve_with_solver(solverPetsc, V[x], V[y]);
Particles.ghost_get<VELOCITY>(SKIP_LABELLING);
div = -(Dx(V[x]) + Dy(V[y]));
P_bulk = P + div;
// calculate error
sum = 0;
sum1 = 0;
for (int j = 0; j < bulk.size(); j++) {
auto p = bulk.get<0>(j);
sum += (Particles.getProp<V_T>(p)[0] - Particles.getProp<VELOCITY>(p)[0]) *
(Particles.getProp<V_T>(p)[0] - Particles.getProp<VELOCITY>(p)[0]) +
(Particles.getProp<V_T>(p)[1] - Particles.getProp<VELOCITY>(p)[1]) *
(Particles.getProp<V_T>(p)[1] - Particles.getProp<VELOCITY>(p)[1]);
sum1 += Particles.getProp<VELOCITY>(p)[0] * Particles.getProp<VELOCITY>(p)[0] +
Particles.getProp<VELOCITY>(p)[1] * Particles.getProp<VELOCITY>(p)[1];
}
V_t = V;
v_cl.sum(sum);
v_cl.sum(sum1);
v_cl.execute();
sum = sqrt(sum);
sum1 = sqrt(sum1);
V_err_old = V_err;
V_err = sum / sum1;
if (V_err > V_err_old || abs(V_err_old - V_err) < 1e-8) {
errctr++;
//alpha_P -= 0.1;
} else {
errctr = 0;
}
if (n > 3) {
if (errctr > 3) {
std::cout << "CONVERGENCE LOOP BROKEN DUE TO INCREASE/VERY SLOW DECREASE IN DIVERGENCE" << std::endl;
Vreset = 1;
break;
} else {
Vreset = 0;
}
}
n++;
}
tt.stop();
Particles.ghost_get<VELOCITY>(SKIP_LABELLING);
// calculate strain rate
u[x][x] = Dx(V[x]);
u[x][y] = 0.5 * (Dx(V[y]) + Dy(V[x]));
u[y][x] = 0.5 * (Dy(V[x]) + Dx(V[y]));
u[y][y] = Dy(V[y]);
if (v_cl.rank() == 0) {
std::cout << "Rel l2 cgs err in V = " << V_err << " and took " << tt.getwct() << " seconds with " << n
<< " iterations. dt for the stepper is " << dt
<< std::endl;
}
// calculate vorticity
W[x][x] = 0;
W[x][y] = 0.5 * (Dy(V[x]) - Dx(V[y]));
W[y][x] = 0.5 * (Dx(V[y]) - Dy(V[x]));
W[y][y] = 0;
if (ctr%wr_at==0 || ctr==wr_f){
Particles.deleteGhost();
Particles.write_frame("Polar",ctr);
Particles.ghost_get<POLARIZATION>();
}
}
};
Point_test
Test structure used for several test.
Definition Point_test.hpp:106
eq_id
Definition eq_solve_common.hpp:15
petsc_solver
In case T does not match the PETSC precision compilation create a stub structure.
Definition petsc_solver.hpp:56
timer
Class for cpu time benchmarking.
Definition timer.hpp:28
timer::stop
void stop()
Stop the timer.
Definition timer.hpp:119
timer::start
void start()
Start the timer.
Definition timer.hpp:90
timer::getwct
double getwct()
Return the elapsed real time.
Definition timer.hpp:130
vector_dist_expression
Main class that encapsulate a vector properties operand to be used for expressions construction.
Definition vector_dist_operators.hpp:906
vector_dist_subset::update
void update()
Update the subset indexes.
Definition vector_dist_subset.hpp:188
vector_dist_subset::getIds
openfpm::vector< aggregate< int > > & getIds()
Return the ids.
Definition vector_dist_subset.hpp:170
vector_dist::write_frame
bool write_frame(std::string out, size_t iteration, int opt=VTK_WRITER)
Output particle position and properties.
Definition vector_dist.hpp:2874
vector_dist::getProp
auto getProp(vect_dist_key_dx vec_key) -> decltype(v_prp.template get< id >(vec_key.getKey()))
Get the property of an element.
Definition vector_dist.hpp:826
vector_dist::map
void map(size_t opt=NONE)
It move all the particles that does not belong to the local processor to the respective processor.
Definition vector_dist.hpp:2436
vector_dist::deleteGhost
void deleteGhost()
Delete the particles on the ghost.
Definition vector_dist.hpp:2820
sum
It model an expression expr1 + ... exprn.
Definition sum.hpp:93

Initializating OpenFPM

We start with

  • Initializing OpenFPM
int main(int argc, char* argv[])
{
{ openfpm_init(&argc,&argv);
timer tt2;
tt2.start();
size_t Gd = int(std::atof(argv[1]));
double tf = std::atof(argv[2]);
double dt = tf/std::atof(argv[3]);
wr_f=int(std::atof(argv[3]));
wr_at=1;
V_err_eps = 5e-4;

Creating Particles and assigning subsets

We create a particle distribution we certain rCut for the domain.

Also, we fill the initial Polarity concentration as:

\[ \mathbf{p}(x,y,0)=\left( \begin{matrix} \sin\big(2\pi (\cos\left(\frac{2 x - L_x}{ L_x}\right)-\sin\left(\frac{2 y - L_y}{ L_y}\right) \big)\\[2ex] \cos \big(2\pi (\cos\left(\frac{2 x - L_x}{ L_x}\right)-\sin\left(\frac{2 y - L_y}{ L_y}\right)\big) \end{matrix}\right) \]

double boxsize = 10;
const size_t sz[2] = {Gd, Gd};
Box<2, double> box({0, 0}, {boxsize, boxsize});
double Lx = box.getHigh(0),Ly = box.getHigh(1);
size_t bc[2] = {NON_PERIODIC, NON_PERIODIC};
double spacing = box.getHigh(0) / (sz[0] - 1),rCut = 3.9 * spacing;
int ord = 2;
Ghost<2, double> ghost(rCut);
auto &v_cl = create_vcluster();
vector_dist_ws<2, double,Activegels> Particles(0, box, bc, ghost);
Particles.setPropNames(PropNAMES);
double x0=box.getLow(0), y0=box.getLow(1), x1=box.getHigh(0), y1=box.getHigh(1);
auto it = Particles.getGridIterator(sz);
while (it.isNext()) {
Particles.add();
auto key = it.get();
double xp = key.get(0) * it.getSpacing(0),yp = key.get(1) * it.getSpacing(1);
Particles.getLastPos()[x] = xp;
Particles.getLastPos()[y] = yp;
if (xp != x0 && yp != y0 && xp != x1 && yp != y1)
Particles.getLastSubset(0);
else
Particles.getLastSubset(1);
++it;
}
Particles.map();
Particles.ghost_get<POLARIZATION>();
//auto Pos = getV<PROP_POS>(Particles);
auto Pol = getV<POLARIZATION>(Particles);
auto V = getV<VELOCITY>(Particles);
auto g = getV<EXTFORCE>(Particles);
auto P = getV<PRESSURE>(Particles);
auto delmu = getV<DELMU>(Particles);
auto dPol = getV<DPOL>(Particles);
g = 0;delmu = -1.0;P = 0;V = 0;
auto it2 = Particles.getDomainIterator();
while (it2.isNext()) {
auto p = it2.get();
Point<2, double> xp = Particles.getPos(p);
Particles.getProp<POLARIZATION>(p)[x] = sin(2 * M_PI * (cos((2 * xp[x] - Lx) / Lx) - sin((2 * xp[y] - Ly) / Ly)));
Particles.getProp<POLARIZATION>(p)[y] = cos(2 * M_PI * (cos((2 * xp[x] - Lx) / Lx) - sin((2 * xp[y] - Ly) / Ly)));
++it2;
}
Particles.ghost_get<POLARIZATION,EXTFORCE,DELMU>(SKIP_LABELLING);
Box
This class represent an N-dimensional box.
Definition Box.hpp:61
Box::getHigh
__device__ __host__ T getHigh(int i) const
get the high interval of the box
Definition Box.hpp:567
vector_dist_iterator::get
vect_dist_key_dx get()
Get the actual key.
Definition vector_dist_iterator.hpp:75
vector_dist::getGridIterator
grid_dist_id_iterator_dec< Decomposition > getGridIterator(const size_t(&sz)[dim])
Definition vector_dist.hpp:2093
vector_dist::setPropNames
void setPropNames(const openfpm::vector< std::string > &names)
Set the properties names.
Definition vector_dist.hpp:3191
vector_dist::getPos
auto getPos(vect_dist_key_dx vec_key) -> decltype(v_pos.template get< 0 >(vec_key.getKey()))
Get the position of an element.
Definition vector_dist.hpp:722
vector_dist::getDomainIterator
vector_dist_iterator getDomainIterator() const
Get an iterator that traverse the particles in the domain.
Definition vector_dist.hpp:2165
vector_dist::getLastPos
auto getLastPos() -> decltype(v_pos.template get< 0 >(0))
Get the position of the last element.
Definition vector_dist.hpp:1130
vector_dist::add
void add()
Add local particle.
Definition vector_dist.hpp:1094

Create the subset, differential operators, steppers and Cast Global Pointers

On the particles we just created we need to constructed the subset object based on the numbering. Further, We cast the Global Pointers so that Odeint RHS functor can recognize our openfpm distributed structure.

We create DCPSE based operators and alias the particle properties.

vector_dist_subset<2, double, Activegels> Particles_bulk(Particles,0);
vector_dist_subset<2, double, Activegels> Particles_boundary(Particles,1);
auto & bulk = Particles_bulk.getIds();
auto & boundary = Particles_boundary.getIds();
auto P_bulk = getV<PRESSURE>(Particles_bulk);//Pressure only on inside
auto Pol_bulk = getV<POLARIZATION>(Particles_bulk);;
auto dPol_bulk = getV<DPOL>(Particles_bulk);
auto dV_bulk = getV<DV>(Particles_bulk);
auto RHS_bulk = getV<VRHS>(Particles_bulk);
auto div_bulk = getV<DIV>(Particles_bulk);
Derivative_x Dx(Particles,ord,rCut), Bulk_Dx(Particles_bulk,ord,rCut);
Derivative_y Dy(Particles, ord, rCut), Bulk_Dy(Particles_bulk, ord,rCut);
Derivative_xy Dxy(Particles, ord, rCut);
auto Dyx = Dxy;
Derivative_xx Dxx(Particles, ord, rCut);
Derivative_yy Dyy(Particles, ord, rCut);
boost::numeric::odeint::runge_kutta4< state_type_2d_ofp,double,state_type_2d_ofp,double,boost::numeric::odeint::vector_space_algebra_ofp> rk4;
vectorGlobal=(void *) &Particles;
vectorGlobal_bulk=(void *) &Particles_bulk;
vectorGlobal_boundary=(void *) &Particles_boundary;
PolarEv<Derivative_x,Derivative_y,Derivative_xx,Derivative_xy,Derivative_yy> System(Dx,Dy,Dxx,Dxy,Dyy);
CalcVelocity<Derivative_x,Derivative_y,Derivative_xx,Derivative_xy,Derivative_yy> CalcVelocityObserver(Dx,Dy,Dxx,Dxy,Dyy,Bulk_Dx,Bulk_Dy);
state_type_2d_ofp tPol;
tPol.data.get<0>()=Pol[x];
tPol.data.get<1>()=Pol[y];
System
System of equations.
Definition System.hpp:24

Calling Odeint

We initiliaze the time variable t, step_size dt and final time tf.

We create a vector for storing the intermidiate time steps, as most odeint calls return such an object.

We then Call the Odeint_rk4 method created above to do a rk4 time integration from t0 to tf with arguments as the System, the state_type, current time t and the stepsize dt.

Odeint updates X in place. And automatically advect the particles (an Euler step) and do a map and ghost_get as needed after moving particles by calling the observer.

The observer then updates the subset bulk and the DCPSE operators.

The observer also Solves the Force Balance.

We finally deallocate the DCPSE operators and finalize the library.

// intermediate time steps
std::vector<double> inter_times;
size_t steps = integrate_const(rk4 , System , tPol , tim , tf , dt, CalcVelocityObserver);
std::cout << "Time steps: " << steps << std::endl;
Pol_bulk[x]=tPol.data.get<0>();
Pol_bulk[y]=tPol.data.get<1>();
Particles.deleteGhost();
Particles.write("Polar_Last");
Dx.deallocate(Particles);
Dy.deallocate(Particles);
Dxy.deallocate(Particles);
Dxx.deallocate(Particles);
Dyy.deallocate(Particles);
Bulk_Dx.deallocate(Particles_bulk);
Bulk_Dy.deallocate(Particles_bulk);
std::cout.precision(17);
tt2.stop();
if (v_cl.rank() == 0) {
std::cout << "The simulation took " << tt2.getcputime() << "(CPU) ------ " << tt2.getwct()
<< "(Wall) Seconds.";
}
}
openfpm_finalize();
timer::getcputime
double getcputime()
Return the cpu time.
Definition timer.hpp:142
vector_dist::write
bool write(std::string out, int opt=VTK_WRITER)
Output particle position and properties.
Definition vector_dist.hpp:2759

Full code

//
// Created by Abhinav Singh on 15.03.20.
//
// Include Vector Expression,Vector Expressions for Subset,DCPSE,Odeint header files
#include "config.h"
#define BOOST_MPL_CFG_NO_PREPROCESSED_HEADERS
#define BOOST_MPL_LIMIT_VECTOR_SIZE 40
#include <iostream>
#include "DCPSE/DCPSE_op/DCPSE_op.hpp"
#include "DCPSE/DCPSE_op/DCPSE_Solver.hpp"
#include "Operators/Vector/vector_dist_operators.hpp"
#include "Vector/vector_dist_subset.hpp"
#include "DCPSE/DCPSE_op/EqnsStruct.hpp"
#include "OdeIntegrators/OdeIntegrators.hpp"
constexpr int x = 0;
constexpr int y = 1;
constexpr int POLARIZATION= 0,VELOCITY = 1, VORTICITY = 2, EXTFORCE = 3,PRESSURE = 4, STRAIN_RATE = 5, STRESS = 6, MOLFIELD = 7, DPOL = 8, DV = 9, VRHS = 10, F1 = 11, F2 = 12, F3 = 13, F4 = 14, F5 = 15, F6 = 16, V_T = 17, DIV = 18, DELMU = 19, HPB = 20, FE = 21, R = 22;
double eta = 1.0;
double nu = -0.5;
double gama = 0.1;
double zeta = 0.07;
double Ks = 1.0;
double Kb = 1.0;
double lambda = 0.1;
int wr_f;
int wr_at;
double V_err_eps;
void *vectorGlobal=nullptr,*vectorGlobal_bulk=nullptr,*vectorGlobal_boundary=nullptr;
const openfpm::vector<std::string>
PropNAMES={"00-Polarization","01-Velocity","02-Vorticity","03-ExternalForce","04-Pressure","05-StrainRate","06-Stress","07-MolecularField","08-DPOL","09-DV","10-VRHS","11-f1","12-f2","13-f3","14-f4","15-f5","16-f6","17-V_T","18-DIV","19-DELMU","20-HPB","21-FrankEnergy","22-R"};
typedef aggregate<VectorS<2, double>,VectorS<2, double>,double[2][2],VectorS<2, double>,double,double[2][2],double[2][2],VectorS<2, double>,VectorS<2, double>,VectorS<2, double>,VectorS<2, double>,double,double,double,double,double,double,VectorS<2, double>,double,double,double,double,double> Activegels;
typedef vector_dist_ws<2, double,Activegels> vector_type;
typedef vector_dist_subset<2, double, Activegels> vector_type2;
//Functor to Compute RHS of the time derivative of the polarity
template<typename DX,typename DY,typename DXX,typename DXY,typename DYY>
struct PolarEv
{
DX &Dx;
DY &Dy;
DXX &Dxx;
DXY &Dxy;
DYY &Dyy;
//Constructor
PolarEv(DX &Dx,DY &Dy,DXX &Dxx,DXY &Dxy,DYY &Dyy):Dx(Dx),Dy(Dy),Dxx(Dxx),Dxy(Dxy),Dyy(Dyy)
{}
void operator()( const state_type_2d_ofp &X , state_type_2d_ofp &dxdt , const double t ) const
{
vector_type &Particles= *(vector_type *) vectorGlobal;
vector_type2 &Particles_bulk= *(vector_type2 *) vectorGlobal_bulk;
auto Pol=getV<POLARIZATION>(Particles);
auto Pol_bulk=getV<POLARIZATION>(Particles_bulk);
auto h = getV<MOLFIELD>(Particles);
auto u = getV<STRAIN_RATE>(Particles);
auto dPol = getV<DPOL>(Particles);
auto W = getV<VORTICITY>(Particles);
auto delmu = getV<DELMU>(Particles);
auto H_p_b = getV<HPB>(Particles);
auto r = getV<R>(Particles);
auto dPol_bulk = getV<DPOL>(Particles_bulk);
Pol[x]=X.data.get<0>();
Pol[y]=X.data.get<1>();
Particles.ghost_get<POLARIZATION>(SKIP_LABELLING);
H_p_b = Pol[x] * Pol[x] + Pol[y] * Pol[y];
h[y] = (Pol[x] * (Ks * Dyy(Pol[y]) + Kb * Dxx(Pol[y]) + (Ks - Kb) * Dxy(Pol[x])) -
Pol[y] * (Ks * Dxx(Pol[x]) + Kb * Dyy(Pol[x]) + (Ks - Kb) * Dxy(Pol[y])));
h[x] = -gama * (lambda * delmu - nu * (u[x][x] * Pol[x] * Pol[x] + u[y][y] * Pol[y] * Pol[y] + 2 * u[x][y] * Pol[x] * Pol[y]) / (H_p_b));
dPol_bulk[x] = ((h[x] * Pol[x] - h[y] * Pol[y]) / gama + lambda * delmu * Pol[x] -
nu * (u[x][x] * Pol[x] + u[x][y] * Pol[y]) + W[x][x] * Pol[x] +
W[x][y] * Pol[y]);
dPol_bulk[y] = ((h[x] * Pol[y] + h[y] * Pol[x]) / gama + lambda * delmu * Pol[y] -
nu * (u[y][x] * Pol[x] + u[y][y] * Pol[y]) + W[y][x] * Pol[x] +
W[y][y] * Pol[y]);
dxdt.data.get<0>()=dPol[x];
dxdt.data.get<1>()=dPol[y];
}
};
// Functor to calculate velocity and move particles with explicit euler
template<typename DX,typename DY,typename DXX,typename DXY,typename DYY>
struct CalcVelocity
{
DX &Dx, &Bulk_Dx;
DY &Dy, &Bulk_Dy;
DXX &Dxx;
DXY &Dxy;
DYY &Dyy;
double t_old;
int ctr;
//Constructor
CalcVelocity(DX &Dx,DY &Dy,DXX &Dxx,DXY &Dxy,DYY &Dyy,DX &Bulk_Dx,DY &Bulk_Dy):Dx(Dx),Dy(Dy),Dxx(Dxx),Dxy(Dxy),Dyy(Dyy),Bulk_Dx(Bulk_Dx),Bulk_Dy(Bulk_Dy)
{
t_old = 0.0;
ctr = 0;
}
void operator() (state_type_2d_ofp &state, double t)
{
double dt = t - t_old;
vector_type &Particles= *(vector_type *) vectorGlobal;
vector_type2 &Particles_bulk= *(vector_type2 *) vectorGlobal_bulk;
vector_type2 &Particles_boundary= *(vector_type2 *) vectorGlobal_boundary;
auto &v_cl = create_vcluster();
timer tt;
auto Pos = getV<PROP_POS>(Particles);
auto Pol=getV<POLARIZATION>(Particles);
auto V = getV<VELOCITY>(Particles);
auto H_p_b = getV<HPB>(Particles);
// skip in first time step
if (dt != 0) {
tt.start();
//normalize polarization
H_p_b = sqrt(Pol[x] * Pol[x] + Pol[y] * Pol[y]);
Pol = Pol / H_p_b;
Pos = Pos + (t-t_old)*V;
Particles.map();
Particles.ghost_get<POLARIZATION, EXTFORCE, DELMU>();
Particles_bulk.update();
Particles_boundary.update();
tt.start();
Dx.update(Particles);
Dy.update(Particles);
Dxy.update(Particles);
Dxx.update(Particles);
Dyy.update(Particles);
Bulk_Dx.update(Particles_bulk);
Bulk_Dy.update(Particles_bulk);
state.data.get<0>()=Pol[x];
state.data.get<1>()=Pol[y];
tt.stop();
if (v_cl.rank() == 0) {
std::cout << "Updating operators took " << tt.getwct() << " seconds." << std::endl;
std::cout << "Time step " << ctr << " : " << t << " over." << std::endl;
std::cout << "----------------------------------------------------------" << std::endl;
}
ctr++;
}
auto Dyx = Dxy;
t_old = t;
tt.start();
auto & bulk = Particles_bulk.getIds();
auto & boundary = Particles_boundary.getIds();
auto Pol_bulk=getV<POLARIZATION>(Particles_bulk);
auto sigma = getV<STRESS>(Particles);
auto r = getV<R>(Particles);
auto h = getV<MOLFIELD>(Particles);
auto FranckEnergyDensity = getV<FE>(Particles);
auto f1 = getV<F1>(Particles);
auto f2 = getV<F2>(Particles);
auto f3 = getV<F3>(Particles);
auto f4 = getV<F4>(Particles);
auto f5 = getV<F5>(Particles);
auto f6 = getV<F6>(Particles);
auto dV = getV<DV>(Particles);
auto delmu = getV<DELMU>(Particles); // why is delmu a property, not a constant?
auto g = getV<EXTFORCE>(Particles);
auto P = getV<PRESSURE>(Particles);
auto P_bulk = getV<PRESSURE>(Particles_bulk); //Pressure only on inside
auto RHS = getV<VRHS>(Particles);
auto RHS_bulk = getV<VRHS>(Particles_bulk);
auto div = getV<DIV>(Particles);
auto V_t = getV<V_T>(Particles);
auto u = getV<STRAIN_RATE>(Particles);
auto W = getV<VORTICITY>(Particles);
Pol_bulk[x]=state.data.get<0>();
Pol_bulk[y]=state.data.get<1>();
Particles.ghost_get<POLARIZATION>(SKIP_LABELLING);
eq_id x_comp, y_comp;
x_comp.setId(0);
y_comp.setId(1);
int n = 0,nmax = 300,errctr = 0, Vreset = 0;
double V_err = 1,V_err_eps = 5 * 1e-3, V_err_old,sum, sum1;
std::cout << "Calculate velocity (step t=" << t << ")" << std::endl;
tt.start();
petsc_solver<double> solverPetsc;
solverPetsc.setSolver(KSPGMRES);
solverPetsc.setPreconditioner(PCJACOBI);
Particles.ghost_get<POLARIZATION>(SKIP_LABELLING);
// calculate stress
sigma[x][x] =
-Ks * Dx(Pol[x]) * Dx(Pol[x]) - Kb * Dx(Pol[y]) * Dx(Pol[y]) + (Kb - Ks) * Dy(Pol[x]) * Dx(Pol[y]);
sigma[x][y] =
-Ks * Dy(Pol[y]) * Dx(Pol[y]) - Kb * Dy(Pol[x]) * Dx(Pol[x]) + (Kb - Ks) * Dx(Pol[y]) * Dx(Pol[x]);
sigma[y][x] =
-Ks * Dx(Pol[x]) * Dy(Pol[x]) - Kb * Dx(Pol[y]) * Dy(Pol[y]) + (Kb - Ks) * Dy(Pol[x]) * Dy(Pol[y]);
sigma[y][y] =
-Ks * Dy(Pol[y]) * Dy(Pol[y]) - Kb * Dy(Pol[x]) * Dy(Pol[x]) + (Kb - Ks) * Dx(Pol[y]) * Dy(Pol[x]);
Particles.ghost_get<STRESS>(SKIP_LABELLING);
// if R == 0 then set to 1 to avoid division by zero for defects
r = Pol[x] * Pol[x] + Pol[y] * Pol[y];
for (int j = 0; j < bulk.size(); j++) {
auto p = bulk.get<0>(j);
Particles.getProp<R>(p) = (Particles.getProp<R>(p) == 0) ? 1 : Particles.getProp<R>(p);
}
for (int j = 0; j < boundary.size(); j++) {
auto p = boundary.get<0>(j);
Particles.getProp<R>(p) = (Particles.getProp<R>(p) == 0) ? 1 : Particles.getProp<R>(p);
}
// calculate traversal molecular field (H_perpendicular)
h[y] = (Pol[x] * (Ks * Dyy(Pol[y]) + Kb * Dxx(Pol[y]) + (Ks - Kb) * Dxy(Pol[x])) -
Pol[y] * (Ks * Dxx(Pol[x]) + Kb * Dyy(Pol[x]) + (Ks - Kb) * Dxy(Pol[y])));
Particles.ghost_get<MOLFIELD>(SKIP_LABELLING);
// calulate FranckEnergyDensity
FranckEnergyDensity = (Ks / 2.0) *
((Dx(Pol[x]) * Dx(Pol[x])) + (Dy(Pol[x]) * Dy(Pol[x])) +
(Dx(Pol[y]) * Dx(Pol[y])) +
(Dy(Pol[y]) * Dy(Pol[y]))) +
((Kb - Ks) / 2.0) * ((Dx(Pol[y]) - Dy(Pol[x])) * (Dx(Pol[y]) - Dy(Pol[x])));
Particles.ghost_get<FE>(SKIP_LABELLING);
// calculate preactors for LHS of Stokes Equation.
f1 = gama * nu * Pol[x] * Pol[x] * (Pol[x] * Pol[x] - Pol[y] * Pol[y]) / (r);
f2 = 2.0 * gama * nu * Pol[x] * Pol[y] * (Pol[x] * Pol[x] - Pol[y] * Pol[y]) / (r);
f3 = gama * nu * Pol[y] * Pol[y] * (Pol[x] * Pol[x] - Pol[y] * Pol[y]) / (r);
f4 = 2.0 * gama * nu * Pol[x] * Pol[x] * Pol[x] * Pol[y] / (r);
f5 = 4.0 * gama * nu * Pol[x] * Pol[x] * Pol[y] * Pol[y] / (r);
f6 = 2.0 * gama * nu * Pol[x] * Pol[y] * Pol[y] * Pol[y] / (r);
Particles.ghost_get<F1, F2, F3, F4, F5, F6>(SKIP_LABELLING);
texp_v<double> Dxf1 = Dx(f1),Dxf2 = Dx(f2),Dxf3 = Dx(f3),Dxf4 = Dx(f4),Dxf5 = Dx(f5),Dxf6 = Dx(f6),
Dyf1 = Dy(f1),Dyf2 = Dy(f2),Dyf3 = Dy(f3),Dyf4 = Dy(f4),Dyf5 = Dy(f5),Dyf6 = Dy(f6);
// calculate RHS of Stokes Equation without pressure
dV[x] = -0.5 * Dy(h[y]) + zeta * Dx(delmu * Pol[x] * Pol[x]) + zeta * Dy(delmu * Pol[x] * Pol[y]) -
zeta * Dx(0.5 * delmu * (Pol[x] * Pol[x] + Pol[y] * Pol[y])) -
0.5 * nu * Dx(-2.0 * h[y] * Pol[x] * Pol[y])
- 0.5 * nu * Dy(h[y] * (Pol[x] * Pol[x] - Pol[y] * Pol[y])) - Dx(sigma[x][x]) -
Dy(sigma[x][y]) -
g[x]
- 0.5 * nu * Dx(-gama * lambda * delmu * (Pol[x] * Pol[x] - Pol[y] * Pol[y]))
- 0.5 * Dy(-2.0 * gama * lambda * delmu * (Pol[x] * Pol[y]));
dV[y] = -0.5 * Dx(-h[y]) + zeta * Dy(delmu * Pol[y] * Pol[y]) + zeta * Dx(delmu * Pol[x] * Pol[y]) -
zeta * Dy(0.5 * delmu * (Pol[x] * Pol[x] + Pol[y] * Pol[y])) -
0.5 * nu * Dy(2.0 * h[y] * Pol[x] * Pol[y])
- 0.5 * nu * Dx(h[y] * (Pol[x] * Pol[x] - Pol[y] * Pol[y])) - Dx(sigma[y][x]) -
Dy(sigma[y][y]) -
g[y]
- 0.5 * nu * Dy(gama * lambda * delmu * (Pol[x] * Pol[x] - Pol[y] * Pol[y]))
- 0.5 * Dx(-2.0 * gama * lambda * delmu * (Pol[x] * Pol[y]));
Particles.ghost_get<DV>(SKIP_LABELLING);
// Encode LHS of the Stokes Equations
auto Stokes1 = eta * (Dxx(V[x]) + Dyy(V[x]))
+ 0.5 * nu * (Dxf1 * Dx(V[x]) + f1 * Dxx(V[x]))
+ 0.5 * nu * (Dxf2 * 0.5 * (Dx(V[y]) + Dy(V[x])) + f2 * 0.5 * (Dxx(V[y]) + Dyx(V[x])))
+ 0.5 * nu * (Dxf3 * Dy(V[y]) + f3 * Dyx(V[y]))
+ 0.5 * nu * (Dyf4 * Dx(V[x]) + f4 * Dxy(V[x]))
+ 0.5 * nu * (Dyf5 * 0.5 * (Dx(V[y]) + Dy(V[x])) + f5 * 0.5 * (Dxy(V[y]) + Dyy(V[x])))
+ 0.5 * nu * (Dyf6 * Dy(V[y]) + f6 * Dyy(V[y]));
auto Stokes2 = eta * (Dxx(V[y]) + Dyy(V[y]))
- 0.5 * nu * (Dyf1 * Dx(V[x]) + f1 * Dxy(V[x]))
- 0.5 * nu * (Dyf2 * 0.5 * (Dx(V[y]) + Dy(V[x])) + f2 * 0.5 * (Dxy(V[y]) + Dyy(V[x])))
- 0.5 * nu * (Dyf3 * Dy(V[y]) + f3 * Dyy(V[y]))
+ 0.5 * nu * (Dxf4 * Dx(V[x]) + f4 * Dxx(V[x]))
+ 0.5 * nu * (Dxf5 * 0.5 * (Dx(V[y]) + Dy(V[x])) + f5 * 0.5 * (Dxx(V[y]) + Dyx(V[x])))
+ 0.5 * nu * (Dxf6 * Dy(V[y]) + f6 * Dyx(V[y]));
tt.stop();
std::cout << "Init of Velocity took " << tt.getwct() << " seconds." << std::endl;
tt.start();
V_err = 1;
n = 0;
errctr = 0;
if (Vreset == 1) {
P = 0;
Vreset = 0;
}
P=0;
// integrate velocity
Particles.ghost_get<PRESSURE>(SKIP_LABELLING);
RHS_bulk[x] = dV[x] + Bulk_Dx(P);
RHS_bulk[y] = dV[y] + Bulk_Dy(P);
Particles.ghost_get<VRHS>(SKIP_LABELLING);
// prepare solver
DCPSE_scheme<equations2d2, vector_type> Solver(Particles);
Solver.impose(Stokes1, bulk, RHS[0], x_comp);
Solver.impose(Stokes2, bulk, RHS[1], y_comp);
Solver.impose(V[x], boundary, 0, x_comp);
Solver.impose(V[y], boundary, 0, y_comp);
Solver.solve_with_solver(solverPetsc, V[x], V[y]);
Particles.ghost_get<VELOCITY>(SKIP_LABELLING);
div = -(Dx(V[x]) + Dy(V[y]));
P_bulk = P + div;
// approximate velocity
while (V_err >= V_err_eps && n <= nmax) {
Particles.ghost_get<PRESSURE>(SKIP_LABELLING);
RHS_bulk[x] = dV[x] + Bulk_Dx(P);
RHS_bulk[y] = dV[y] + Bulk_Dy(P);
Particles.ghost_get<VRHS>(SKIP_LABELLING);
Solver.reset_b();
Solver.impose_b(bulk, RHS[0], x_comp);
Solver.impose_b(bulk, RHS[1], y_comp);
Solver.impose_b(boundary, 0, x_comp);
Solver.impose_b(boundary, 0, y_comp);
Solver.solve_with_solver(solverPetsc, V[x], V[y]);
Particles.ghost_get<VELOCITY>(SKIP_LABELLING);
div = -(Dx(V[x]) + Dy(V[y]));
P_bulk = P + div;
// calculate error
sum = 0;
sum1 = 0;
for (int j = 0; j < bulk.size(); j++) {
auto p = bulk.get<0>(j);
sum += (Particles.getProp<V_T>(p)[0] - Particles.getProp<VELOCITY>(p)[0]) *
(Particles.getProp<V_T>(p)[0] - Particles.getProp<VELOCITY>(p)[0]) +
(Particles.getProp<V_T>(p)[1] - Particles.getProp<VELOCITY>(p)[1]) *
(Particles.getProp<V_T>(p)[1] - Particles.getProp<VELOCITY>(p)[1]);
sum1 += Particles.getProp<VELOCITY>(p)[0] * Particles.getProp<VELOCITY>(p)[0] +
Particles.getProp<VELOCITY>(p)[1] * Particles.getProp<VELOCITY>(p)[1];
}
V_t = V;
v_cl.sum(sum);
v_cl.sum(sum1);
v_cl.execute();
sum = sqrt(sum);
sum1 = sqrt(sum1);
V_err_old = V_err;
V_err = sum / sum1;
if (V_err > V_err_old || abs(V_err_old - V_err) < 1e-8) {
errctr++;
//alpha_P -= 0.1;
} else {
errctr = 0;
}
if (n > 3) {
if (errctr > 3) {
std::cout << "CONVERGENCE LOOP BROKEN DUE TO INCREASE/VERY SLOW DECREASE IN DIVERGENCE" << std::endl;
Vreset = 1;
break;
} else {
Vreset = 0;
}
}
n++;
}
tt.stop();
Particles.ghost_get<VELOCITY>(SKIP_LABELLING);
// calculate strain rate
u[x][x] = Dx(V[x]);
u[x][y] = 0.5 * (Dx(V[y]) + Dy(V[x]));
u[y][x] = 0.5 * (Dy(V[x]) + Dx(V[y]));
u[y][y] = Dy(V[y]);
if (v_cl.rank() == 0) {
std::cout << "Rel l2 cgs err in V = " << V_err << " and took " << tt.getwct() << " seconds with " << n
<< " iterations. dt for the stepper is " << dt
<< std::endl;
}
// calculate vorticity
W[x][x] = 0;
W[x][y] = 0.5 * (Dy(V[x]) - Dx(V[y]));
W[y][x] = 0.5 * (Dx(V[y]) - Dy(V[x]));
W[y][y] = 0;
if (ctr%wr_at==0 || ctr==wr_f){
Particles.deleteGhost();
Particles.write_frame("Polar",ctr);
Particles.ghost_get<POLARIZATION>();
}
}
};
int main(int argc, char* argv[])
{
{ openfpm_init(&argc,&argv);
timer tt2;
tt2.start();
size_t Gd = int(std::atof(argv[1]));
double tf = std::atof(argv[2]);
double dt = tf/std::atof(argv[3]);
wr_f=int(std::atof(argv[3]));
wr_at=1;
V_err_eps = 5e-4;
double boxsize = 10;
const size_t sz[2] = {Gd, Gd};
Box<2, double> box({0, 0}, {boxsize, boxsize});
double Lx = box.getHigh(0),Ly = box.getHigh(1);
size_t bc[2] = {NON_PERIODIC, NON_PERIODIC};
double spacing = box.getHigh(0) / (sz[0] - 1),rCut = 3.9 * spacing;
int ord = 2;
Ghost<2, double> ghost(rCut);
auto &v_cl = create_vcluster();
vector_dist_ws<2, double,Activegels> Particles(0, box, bc, ghost);
Particles.setPropNames(PropNAMES);
double x0=box.getLow(0), y0=box.getLow(1), x1=box.getHigh(0), y1=box.getHigh(1);
auto it = Particles.getGridIterator(sz);
while (it.isNext()) {
Particles.add();
auto key = it.get();
double xp = key.get(0) * it.getSpacing(0),yp = key.get(1) * it.getSpacing(1);
Particles.getLastPos()[x] = xp;
Particles.getLastPos()[y] = yp;
if (xp != x0 && yp != y0 && xp != x1 && yp != y1)
Particles.getLastSubset(0);
else
Particles.getLastSubset(1);
++it;
}
Particles.map();
Particles.ghost_get<POLARIZATION>();
//auto Pos = getV<PROP_POS>(Particles);
auto Pol = getV<POLARIZATION>(Particles);
auto V = getV<VELOCITY>(Particles);
auto g = getV<EXTFORCE>(Particles);
auto P = getV<PRESSURE>(Particles);
auto delmu = getV<DELMU>(Particles);
auto dPol = getV<DPOL>(Particles);
g = 0;delmu = -1.0;P = 0;V = 0;
auto it2 = Particles.getDomainIterator();
while (it2.isNext()) {
auto p = it2.get();
Point<2, double> xp = Particles.getPos(p);
Particles.getProp<POLARIZATION>(p)[x] = sin(2 * M_PI * (cos((2 * xp[x] - Lx) / Lx) - sin((2 * xp[y] - Ly) / Ly)));
Particles.getProp<POLARIZATION>(p)[y] = cos(2 * M_PI * (cos((2 * xp[x] - Lx) / Lx) - sin((2 * xp[y] - Ly) / Ly)));
++it2;
}
Particles.ghost_get<POLARIZATION,EXTFORCE,DELMU>(SKIP_LABELLING);
vector_dist_subset<2, double, Activegels> Particles_bulk(Particles,0);
vector_dist_subset<2, double, Activegels> Particles_boundary(Particles,1);
auto & bulk = Particles_bulk.getIds();
auto & boundary = Particles_boundary.getIds();
auto P_bulk = getV<PRESSURE>(Particles_bulk);//Pressure only on inside
auto Pol_bulk = getV<POLARIZATION>(Particles_bulk);;
auto dPol_bulk = getV<DPOL>(Particles_bulk);
auto dV_bulk = getV<DV>(Particles_bulk);
auto RHS_bulk = getV<VRHS>(Particles_bulk);
auto div_bulk = getV<DIV>(Particles_bulk);
Derivative_x Dx(Particles,ord,rCut), Bulk_Dx(Particles_bulk,ord,rCut);
Derivative_y Dy(Particles, ord, rCut), Bulk_Dy(Particles_bulk, ord,rCut);
Derivative_xy Dxy(Particles, ord, rCut);
auto Dyx = Dxy;
Derivative_xx Dxx(Particles, ord, rCut);
Derivative_yy Dyy(Particles, ord, rCut);
boost::numeric::odeint::runge_kutta4< state_type_2d_ofp,double,state_type_2d_ofp,double,boost::numeric::odeint::vector_space_algebra_ofp> rk4;
vectorGlobal=(void *) &Particles;
vectorGlobal_bulk=(void *) &Particles_bulk;
vectorGlobal_boundary=(void *) &Particles_boundary;
PolarEv<Derivative_x,Derivative_y,Derivative_xx,Derivative_xy,Derivative_yy> System(Dx,Dy,Dxx,Dxy,Dyy);
CalcVelocity<Derivative_x,Derivative_y,Derivative_xx,Derivative_xy,Derivative_yy> CalcVelocityObserver(Dx,Dy,Dxx,Dxy,Dyy,Bulk_Dx,Bulk_Dy);
state_type_2d_ofp tPol;
tPol.data.get<0>()=Pol[x];
tPol.data.get<1>()=Pol[y];
timer tt;
timer tt3;
dPol = Pol;
double V_err = 1, V_err_old;
double tim=0;
// intermediate time steps
std::vector<double> inter_times;
size_t steps = integrate_const(rk4 , System , tPol , tim , tf , dt, CalcVelocityObserver);
std::cout << "Time steps: " << steps << std::endl;
Pol_bulk[x]=tPol.data.get<0>();
Pol_bulk[y]=tPol.data.get<1>();
Particles.deleteGhost();
Particles.write("Polar_Last");
Dx.deallocate(Particles);
Dy.deallocate(Particles);
Dxy.deallocate(Particles);
Dxx.deallocate(Particles);
Dyy.deallocate(Particles);
Bulk_Dx.deallocate(Particles_bulk);
Bulk_Dy.deallocate(Particles_bulk);
std::cout.precision(17);
tt2.stop();
if (v_cl.rank() == 0) {
std::cout << "The simulation took " << tt2.getcputime() << "(CPU) ------ " << tt2.getwct()
<< "(Wall) Seconds.";
}
}
openfpm_finalize();
}
Point::get
__device__ __host__ const T & get(unsigned int i) const
Get coordinate.
Definition Point.hpp:172
cub::int
KeyT const ValueT ValueT OffsetIteratorT OffsetIteratorT int
[in] The number of segments that comprise the sorting data
Definition dispatch_radix_sort.cuh:336
